1. What is DVR ?
DVR (Digital Video Recording)
is a new style of
recording system that changes the
signal of analog
image in CCTV camera into the
digital data. DVR
compresses and retrieves the
recording images
through the international code of
H.263 or MPEG (Moving
Picture Experts Group) so that it
can display clear
image. DVR has also a lot of strong
points compare to
current CCTV systems as,
|
|
- High speed
multi-recording
- Motion Detection
- Remote Camera Control
- Function of magnifying
- Editing
- Storage data
permanently
- Remote surveillance,
recording and palay-back through modem, LAN and xDSL
- Competitive price
level compare to existing analog CCTV recording system
DVR provide the newest
surveillance system can protect crime and reform security
system.
|
|
|
2. DVR Internal
Architecture.

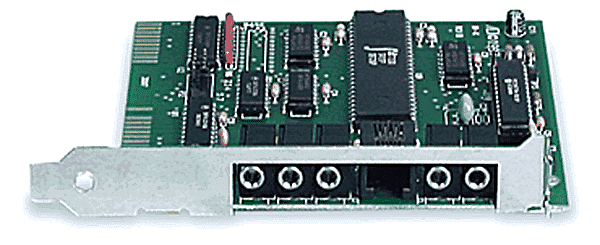

Capture Board
A device which
captures analog image signal and changes into digital image.
Main Processor
A main processing
part of DVR which process Image Compression, Image Processing.
Storage Device
Stored media such
as Hard Disk, CD.
Display Device
Display media such
as CRT Monitor, Computer Monitor.
|
|
3. Kinds
of DVR
DVR Capture Board
Cheaper than others because
it is a form of card for normal
PC and can be changed easily to DVR
system by using the
current PC. It is recommendable to
be installed at the stable
system because the stability of
current PC affects that of DVR
system.
|
|
PC-Type DVR
|
PC-Type DVR System.
Commonly, It is combined
capture board which used for
image recording with PC. Basically,
it is using Windows 98 or
reinforced network function NT as
O/S. The system is stable
because it is manufactured with
full set product. Users can
install easily because PTZ, sensor
control function, related
software are installed at the
current PC.
|
Settop
Box DVR (Stand alone)
It is a DVR system on the
basis of exclusive main board having
a general function of a personal
computer. Problems that could
occur on the PC have been prevented
at the initial stage of
planning products. This is very
stable surveillance system
because the only necessary parts
have been used and
excluded the unnecessary parts of
the style of PC. But the
price is more expensive than
other models even though the
less number of parts have been
used.
|
SETTOP BOX
|
|
|
4. Accessories
CCD
Camera
|
Camera which can be used to
the general DVR devices is available for
any general CCTV camera which
supports NTSC or PAL. NTSC
transmits the image by 30fps and
PAL transmits the image by 25fps.
Each frame is made up of 2 fields.
|
|
|
Voice
control board
|
It is necessary when the
voice communication is executed through
microphone/speaker.
|
|
|
RX
Receiver
|
It is an electrical device
which executes camera Pan/Tilt, Zoom,
Focus control. It receives various
control order of DVR and executes
real camera control. It is possible
to compose flexible install location of
camera and DVR because the wire
communication between RX
Receiver and DVR from 1.2 km remote
is possible.
|
|
|
Halogen
Light
|
Halogen Light is used for the
surveillance area at night offering the
wide scope of illumination.
|
|
|
Pan/Tilt
Driver
|
Pan/Tilt Driver is a device
which can change the camera focus to the
left, right, and up/down by
operation of motor through the electric
signal. It provides the function
that user can change the surveillance
area of camera by fixing Pan/Tilt
driver to the general CCD camera
together with housing. There are
many kinds of products such as
in/outdoors and explosion proof
type etc.
|
|
|
Network
Device
|
LAN Card, Modem, ISDN Adaptor
are necessary to each PC in order to
install remote surveillance system.
Meantime, it is necessary that
Router by proper network design,
CSU/DSU, reserved line in order to
support the connection by the
reserved line.
|
|
|
ETC
|
The other additional devices
are Joystick used for convenience in
camera control, various kinds of
sensors and microphone, speaker,
amplifier for sound surveillance
and broadcasting can be installed.
|
|
